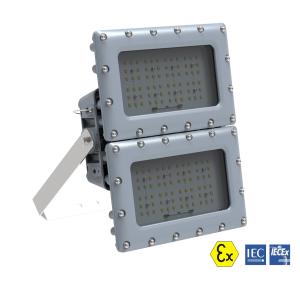

Oil Refinery 160 Watt Zone 1 Explosion Proof Lighting Corrosion Resistance

Brand Name : KHJ

Model Number : Ex-KT160,Ex-KT200,Ex-KT240

Certification : ATEX,IECEx,CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per day

Delivery Time : 3-8 work days

Packaging Details : 486*410*180mm

Product Name : Tank series

Operating Voltage : 100-277 VAC, 347-480 VAC,141-391VDC,491-679 VDC

Rated Power : 160W 200W 240W

Luminaire Efficacy : Max:152lm/W

Area Classification : Group II, Zone 1 & 21 and 2 & 22

Size : 332*426*142mm

Ambient Temperature : -40℃-+55℃

Connecting Terminals : 3*1.0-4mm²(L+N+PE)

Contact Now

Explosion Proof Lighting for Zone 1,160W,200W,240W, corrosion resistance, surge protection

Ex- Tank series Explosion Proof LED floodlight, 160W,200W,240W, Ex db,IP66,Zone 1&2,Zone 21&22

Highlight: Zone 1 Explosion Proof Lighting Ex db,IP66

Features And Benefits:

1. Modular design allows great flexibility.

2. L70 rated for >100,000 hours.

3. Five years full performance warranty.

4. Resistant to shock and vibration.

5. Maintenance free.

Product Important Information:

Type Of Protection	Ex db ,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate
Equipment Coding	II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66
Temperature Class	Rated power(W)	-40℃ ≤ Ta ≤ +55℃
		Gas	Dust
	160W~240W	T5	T95℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5,M251.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

Ex- Tank series was designed specifically o replace conventional lighting in a wide variety of hazardous area applications, both indoor and outdoor.

1. Oil&Gas exploration

2. Drilling

3. Oil Refinery

4. Petrochemical Plant
Oil Refinery 160 Watt Zone 1 Explosion Proof Lighting Corrosion Resistance

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classification
Ex-KTK160**CH-S2-E	100-277 VAC (141-392 VDC)	22910	160	70	Cool white	5700K±300K	T5
Ex-KTK160**NH-S2-E		22910		70	Natural white	5000K±300K	T5
Ex-KTK160**NH-S2-E		22910		70	Natural white	4000±300k	T5
Ex-KTK160**WM-S2-E		20619		70	Warm white	3000±300k	T5
Ex-KTK200**CH-S2-E		29145	200	70	Cool white	5700±300k	T5
Ex-KTK200**NH-S2-E		29145		70	Natural white	5000±300k	T5
Ex-KTK200**NH-S2-E		29145		70	Natural white	4000±300k	T5
Ex-KTK200**WM-S2-E		26230		70	Warm white	3000±300k	T5
Ex-KTK240**CH-S2-E		34136	240	70	Cool white	5700±300k	T5
Ex-KTK240**NH-S2-E		34136		70	Natural white	5000±300k	T5
Ex-KTK240**NH-S2-E		34136		70	Natural white	4000±300k	T5
Ex-KTK240**WM-S2-E		30884		70	Warm white	3000±300k	T5

Remarks:

1. The ﬁrst * stands for Operating Voltage including default -100-277VAC,D-347-480VAC.

2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.

4. Various designs.

5. Accept small orders.

Product Tags:

160 Watt Zone 1 Explosion Proof Lighting

Oil Refinery Zone 1 Explosion Proof Lighting

160 Watt ex proof led lights
